适用标准
钢制旋塞阀，API599/API 6D，ISO 14313
温度和压力，ASME B16.34
结构长度，ASME B 16.10
端法兰， ASME B 16.5
防静电设计，API 599
耐火标准，API-607
对焊端，ASME B16.25
设计说明
栓接阀盖
PTFE衬里、锥形柱塞
无需润滑
杆柱一体
在线调节
防火防静电设计
限位装置
可更换阀座
法兰或焊接端
可安装涡轮

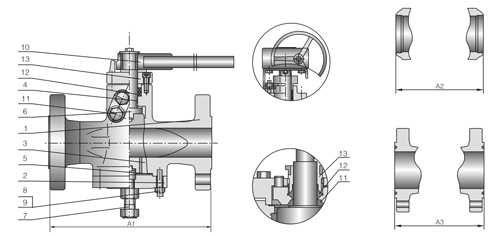

标准材料规范
|
NO. |
Part Name |
ASTM Material |
|
Carbon steel |
304 Type |
316 Type |
304LType |
316LType |
20 Alloy |
|
1 |
Body |
A216 WCB |
A351CF8 |
A351 CF8M |
A351CF3 |
A351 CF3M |
A351CN7M |
|
2 |
Bonnet |
A216 WCB |
A351CF8 |
A351 CF8M |
A351CF3 |
A351 CF3M |
A351CN7M |
|
3 |
Plug |
A182 F304 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
20 Alloy |
|
4 |
O-ring |
Viton |
|
5 |
Bonnet Gasket |
304+graphite |
304+graphite |
316+graphite |
304L+graphite |
316L+graphite |
316+graphite |
|
6 |
Adjusting Gasket |
A182 F6a |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
20-Alloy |
|
7 |
Adjusting Bolt |
A193 B7 |
A276304 |
A276316 |
A276304L |
A276316L |
20-Alloy |
|
8 |
Bonnet Bolt |
A193 B7 |
A193 B8 |
A193 B8M |
A193 B8 |
A193 B8M |
A193 B8 |
|
9 |
Bonnet Nut |
A1942H |
A194 8 |
A194 8M |
A1948 |
A194 8M |
A1948 |
|
10 |
Handle |
Carbon steel |
Carbon steel+Zn |
|
11 |
Nipple |
Commercial |
|
12 |
Packing |
Graphite |
Graphite *1 |
Graphite *1 |
Graphite *1 |
Graphite *1 |
Graphite *1 |
|
13 |
Gland Flange |
A216 WCB |
A351CF8 |
A351CF8 |
A351CF8 |
A351CF8 |
A351CF8 |
|
*1 |
PTFE Optional |
主要外形尺寸和质量?Class 150
|
Size |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
11/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
A1 |
108 |
117 |
127 |
140 |
165 |
178 |
190 |
203 |
229 |
245 |
267 |
292 |
330 |
356 |
381 |
|
A2 |
152 |
178 |
203 |
216 |
229 |
267 |
305 |
330 |
356 |
381 |
394 |
457 |
533 |
610 |
686 |
|
H |
110 |
115 |
225 |
135 |
140 |
150 |
165 |
180 |
380 |
460 |
520 |
580 |
260 |
680 |
760 |
|
W |
175 |
175 |
175 |
220 |
280 |
305 |
350 |
405 |
300 |
300 |
320 |
320 |
350 |
380 |
450 |
|
Weight (Kg) |
8.5 |
9.5 |
10 |
12 |
14 |
22 |
22 |
26 |
40 |
60 |
70 |
130 |
219 |
381 |
570 |
4*or above with worm gear
主要外形尺寸和质量?Class 300
|
Size |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
A1 |
140 |
152 |
165 |
178 |
190 |
216 |
241 |
283 |
305 |
381 |
403 |
419 |
457 |
502 |
762 |
|
A2 |
152 |
178 |
203 |
216 |
229 |
267 |
305 |
330 |
356 |
381 |
457 |
521 |
559 |
635 |
762 |
|
H |
110 |
115 |
115 |
135 |
140 |
150 |
165 |
180 |
380 |
460 |
520 |
580 |
620 |
680 |
760 |
|
W |
175 |
175 |
175 |
220 |
280 |
305 |
350 |
405 |
300 |
300 |
320 |
320 |
350 |
380 |
450 |
|
Weight (Kg) |
9.5 |
10.5 |
12 |
14 |
16 |
20 |
24 |
29 |
53 |
75 |
85 |
185 |
230 |
390 |
550 |
4* or above with worm gear
主要外形尺寸和质量?Class 600
|
Size |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
A1/A2 |
165 |
190 |
216 |
229 |
214 |
292 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
889 |
|
H |
110 |
115 |
115 |
135 |
140 |
150 |
165 |
180 |
380 |
460 |
520 |
580 |
620 |
680 |
760 |
|
W |
175 |
175 |
175 |
220 |
280 |
305 |
350 |
405 |
300 |
300 |
320 |
320 |
350 |
380 |
450 |
|
Weight (Kg) |
11 |
13 |
17 |
20 |
23 |
27 |
31 |
36 |
72 |
98 |
141 |
245 |
330 |
515 |
710 |
4* or above with worm gear
主要外形尺寸和质量?Class 900
|
Size |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
A1/A2 |
229 |
229 |
254 |
279 |
305 |
368 |
419 |
381 |
457 |
559 |
610 |
737 |
838 |
965 |
1029 |
|
H |
110 |
115 |
115 |
135 |
140 |
150 |
165 |
180 |
380 |
460 |
520 |
580 |
620 |
680 |
760 |
|
W |
175 |
175 |
175 |
220 |
280 |
305 |
350 |
405 |
300 |
300 |
320 |
320 |
350 |
380 |
450 |
|
Weight (Kg) |
131 |
16 |
21 |
24 |
28 |
325 |
40 |
47 |
91 |
117 |
165 |
285 |
420 |
610 |
860 |
4* or above with worm gear
